The highly anticipated DJI Mavic MaXX Mod Kit is here! After 9 months of engineering the Mavic and 3 years modifying the DJI remote controller systems, the best has emerged. Meticulously designed and thoroughly tested across 4 countries, this kit has the world's first "Hot-Swap" antenna system featuring three custom made antennas. Fly with a stronger signal and fly far or fly like an FPV racer in any direction with antennas built for each purpose. No matter what style you choose, you’ll fly with a better signal and gain up 5x more coverage area than stock. The kit doesn't stop there. It amasses all the accessories you need and none of the eBay parts you would have thrown away. The new Award-Winning LowePro backpack holds every part of this kit inside with ease. You can store your entire MaXX Mod remote controller system in one compartment! The special new MavMount device holder, your MaXX Mod antenna system, and your device stay connected and ready to fly in seconds versus minutes.

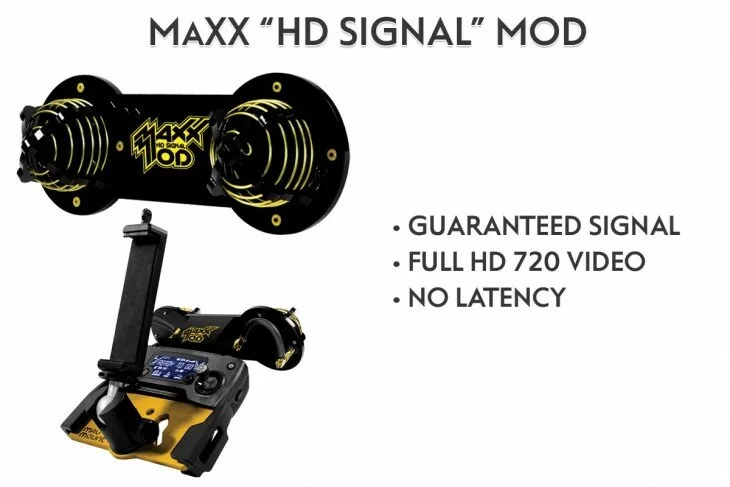

MaXX “HD Signal” Mod
A Mavic industry first, this Drone World signature series antenna is custom crafted to be better built and better tuned than any other helical antenna on the market. With variances less than 0.25dBi of signal loss, this 10.5dBi directional antenna can penetrate stronger and longer than other similar looking designs. Drone pilots alike will love the improved HD image as their Mavic Pro soars through interference even at low elevations. The improved quality allows for better navigation and makes filming easier by providing a richer picture so you can focus on your shot.

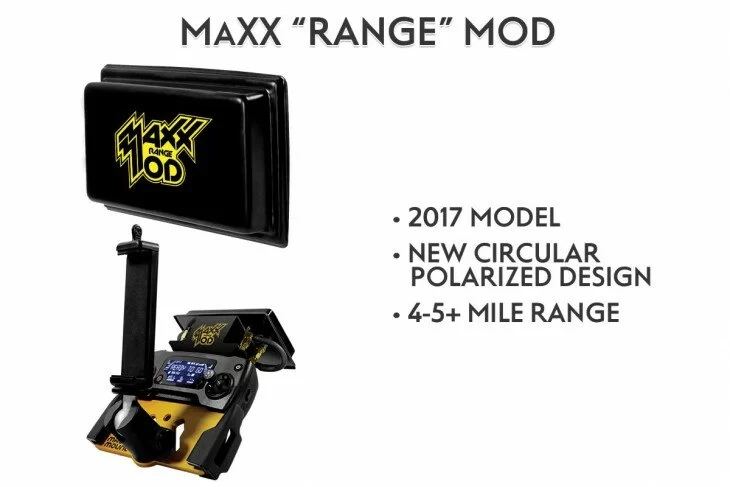

MaXX “Range” Mod
The Flat Panel Antenna brings a substantial range boost to the Mavic Pro. This new 2017 design has circular polarized internals that perform better than the old linear polarized panel antennas of 2016. This gives the pilots better range as well as penetration up to 4-5 miles, or 6+ miles if performing drone battery modifications. Mavic Pro users gain the safety and security of a much longer drone leash.
MaXX “FPV Park” Mod
The FPV Park antenna is also new for 2017 uses 360°field of view that makes it the perfect modification for FPV style flying in places like parks or around trees. Using 98% pure copper fins protected by ABS plastic pilots can enjoy receiving strong signals within a mile range in all directions. No need worry about having to directionally point the remote controller at the drone.

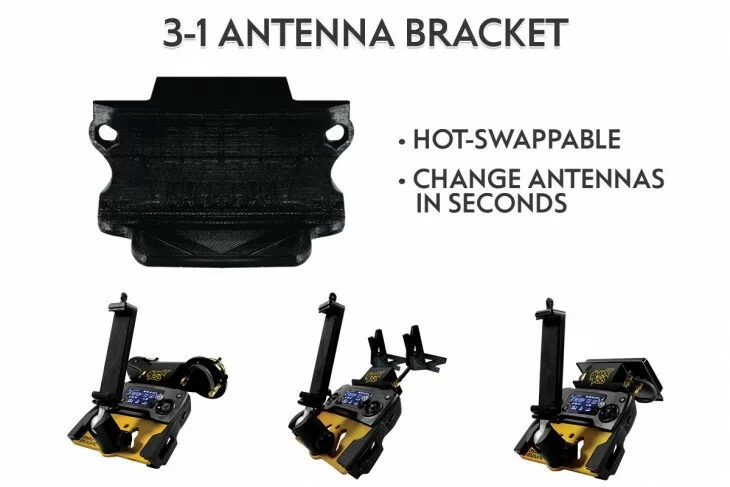

3-1 Antenna Bracket
After thirty test renderings we came up with our 3-in-1 Hot-Swap antenna bracket. It allows the pilot to instantly change between antennas in seconds rather than having to fumble around with loose nuts and bolts. Engineered to function with the factory cooling louvers while still siting flush on the remote, this bracket is compact enough to store inside the LowePro backpack. Cheers to real 3D print engineers!
Military Spec RG58 Wire
We rely on the Military Spec RG58 Wire to tie everything together on the MaXX Mod Kit – they connect each of the antennas to the remote control through the antenna bracket. Ultimately designed to guarantee no signal is lost in transmission.

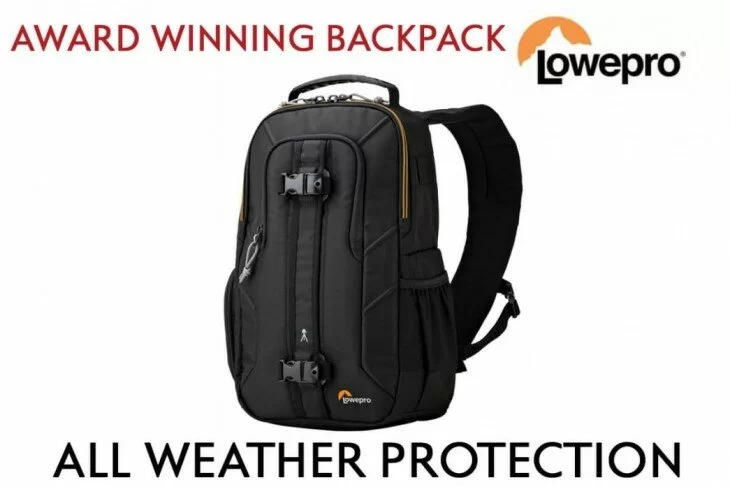

The Award Winning LowePro backpack is a match made in Mavic drone heaven. Flexing its innovative muscles, the new Rapid Deploy compartment allows you to set up your drone to fly in seconds versus minutes. The slim design, padded backpad, and stable strap ensure great ease of movement while allowing you to hike, tour, or just commute around town. Last but not least, the All-Weather AW Cover protects your gear from the elements.

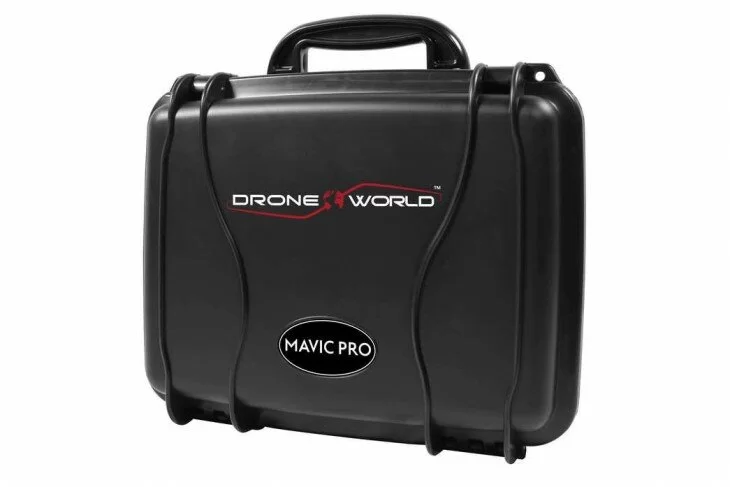

Mavic Hard Case XL
Keeping your drone safe and secure during transport is of the utmost importance, which is why we custom designed this XL hard case for the Mavic Pro. This case is water resistant, extremely durable, and scratch resistant. Plus it gives you enough space for all your MaXX Mod antennas, MavMount device holder, extra batteries, battery bank, misc accessories, and room for any other mods your drone many want down the line.

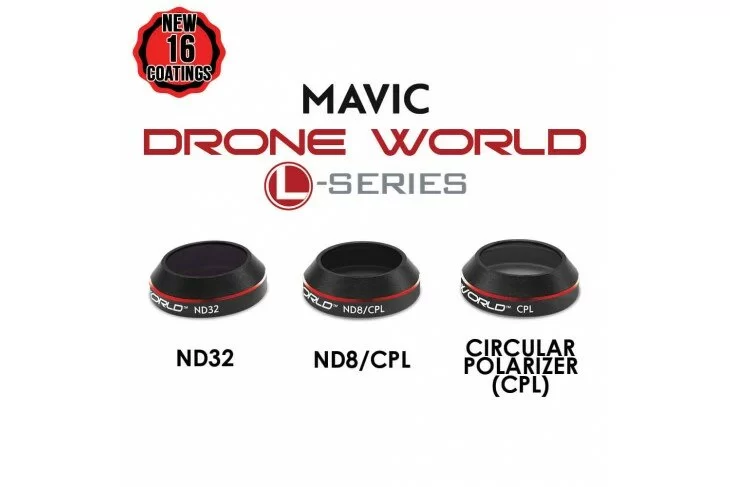

L-Series Lens Filters
Capturing epic quality photos and video is made all the more easy with our new line of L-Series Mavic Filters. Utilizing the highest grade of glass from Japan and incorporating the finest green based filter coatings (16 times coated) you simply can't find a better quality filter kit. Truly convenient is using the new 'dual-stacked' ND8/CPL filter which lets you smooth out your video with the ND8 and also adds that color burst from the CPL. The solo ND32 filter is prefect for those high glare days filming over water, snow or during sunsets. Last in the three pack is the tried and true solo CPL which is great for everyday use in most all conditions. No gimbal pre-calibration is needed with these filters, simply press fit the durable aluminum housing over the camera and you’re good to go!
Mavic Pro users are accustomed to watching their flight via connected smartphone or LCD screen, but with the MavMount, drone enthusiasts can attach a tablet for a better, larger image. Our buddy over at MavMount custom designed this piece out of prideful billet aluminum for strength and he'll tell you that having a steel swivel pivot ball is the only way to hold your expensive tablet. We like it because it folds along with our custom MaXX Mod remote system inside of the top compartment of the LowePro pack. See this bad boy in action in the most extreme environments here, the Himalayan Mountains!

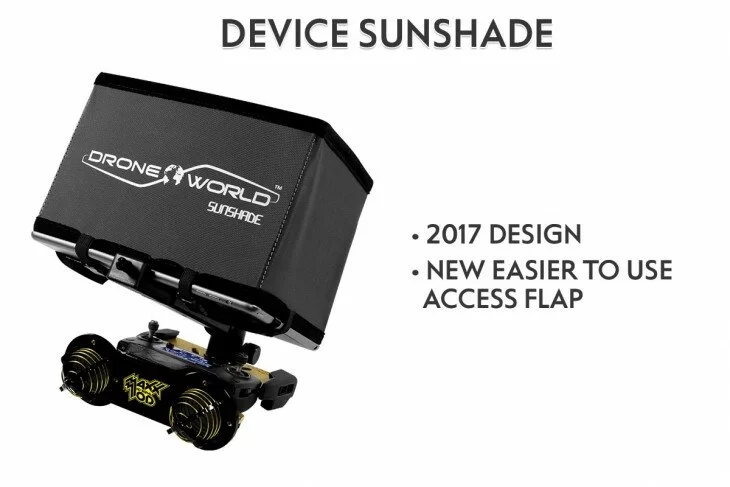

Device Sunshade Our sunshade is an industry first for the Mavic, utilizing a compact design that is completely foldable and specifically designed to fit in either our backpack or hard case. It makes flying in the bright conditions much easier, allowing for a clear view of your live video feed. Better value than the Hoodman brand, it also has a more functional device access flap.

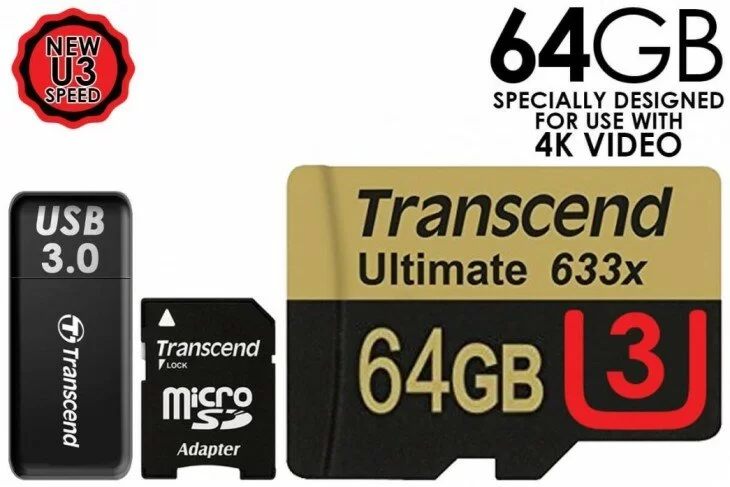

64GB Memory Card
This massive 64GB Transcend memory card with new U3 rating is the top card for secure and rapid transfer of 4K drone media with twice the cycle life of the factory memory card. Trust us, this is a must and we recommend buying extra. They both 1080 full HD (180 minutes) and 4k video (up to 80 minutes).

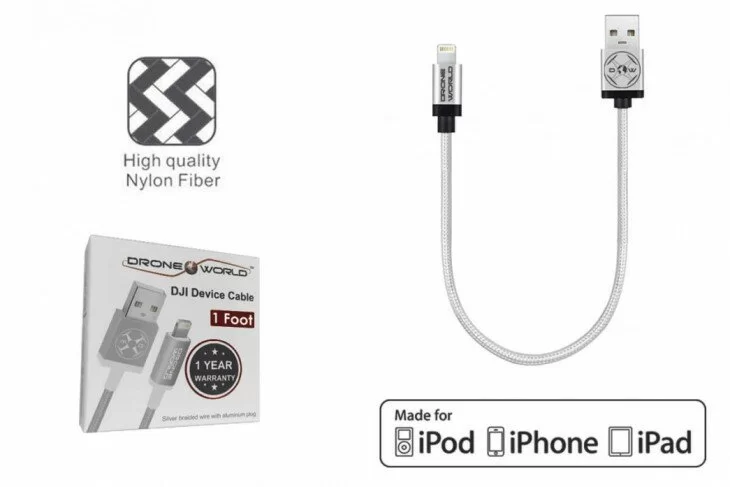

Apple Lightning Cable
Every MaXX Mod Kit includes a Drone World Device Cable. The best part is this cable is MFI certified by Apple to ensure quality and to prevent dangerous radio disconnection. This means you won't have to rely on the drone's GPS failsafe to bring your bird back. A perfect 1 foot length and wrapped with high strength braided nylon, it looks as good as it performs.
This long lasting, high capacity power bank is like three drone batteries! Packing 10,400mah, it will keep your tablet, phone, or mini drone powered up and ready for action while on the go. No need to steal power from drone batteries. It's got dual ports: 1.0A for charging phones and 2.1A for charging larger tablets or use the 2.1A for rapid charging phones. This Drone World brand superstation has over 500 recharge cycles. A great tool to have in your back pocket. Even has a built in LED light.
Our screen protector features a brand new organic-fit design that better contours your Mavic LCD screen. Protects against scratches and reduces glare.

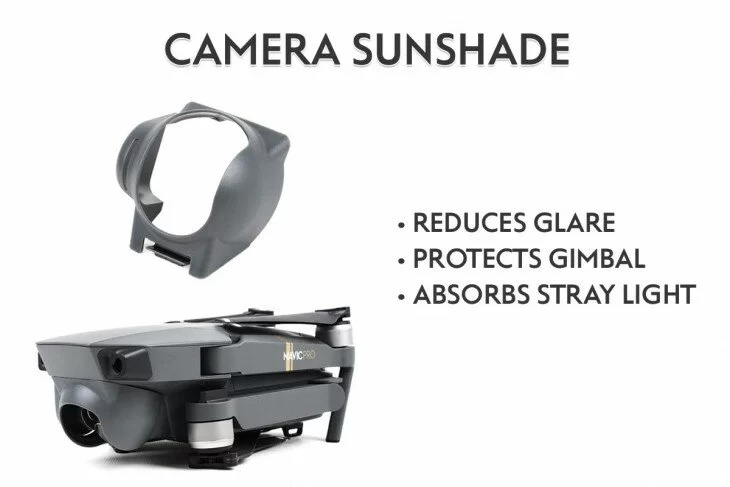

As any photographer will tell you, the sun is as much your ally as it is your adversary. With this handy camera sunhood attached to your Mavic, you can ensure all your photographs receive the same shielding treatment a DSLR camera would get. Though not recommended for video, you'll have a wider color range for post editing photos.
Dust, sand, dirt, and other particles on the ground are prone to damaging the Mavic’s onboard camera during takeoff and landing. Plus, who likes to constantly clean grass of your prop's blades? Also why risk having to perform drone hand-catches without a full size landing gear? That's why we've added these these sturdy, compact and easy to install or remove awesome little leg augmentations.
360° Flip Mini Drone (FREE)
Practice your craziest stunts and have some fun while your real toy charges up with this endlessly fun mini drone. This nano quadcopter can flip in all four directions, has two speed modes coupled with new propeller guards, 6-axis stabilization and 20 meters of wide open range to make this the ultimate micro drone companion. Beware of thrills and dogs ;)
Whether you’re always on-the-go, or need a quick charge en route to your flight, this car charger is for you. Keep your drone ready for action with this convenient device any drone lover would be happy to have. Factory DJI equipment.
|Weight (Including Battery):||1.62 lbs (734 g) (exclude gimbal cover)
1.64 lbs (743 g)(include gimbal cover)
|Max Ascent Speed:||16.4 ft/s (5 m/s) in Sport mode (Sport mode)|
|Max Descent Speed:||9.8 ft/s (3 m/s)|
|Max Speed:||40 mph (65 kph) in Sport mode without wind (Sport mode)|
|Max Service Ceiling Above Sea Level:||16404 feet (5000 m)|
|Max Flight Time:||27 minutes (0 wind at a consistent 15.5 mph (25 kph))|
|Max Hovering Time:||24 minutes (0 wind)|
|Overall flight time:||21 munites ( In normal flight, 15% remaining battery level )|
|Max Flight Distance:||8 mi (13 km, 0 wind)|
|Operating Temperature Range:||32° to 104° F (0° to 40° C)|
|GPS Mode:||GPS / GLONASS|
OBSTACLE SENSING SYSTEM
|Obstacle Sensory Range:||Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m)
Detectable range: 49 ft (15 m) to 98 ft (30 m)
|Operating Environment:||Surface with clear pattern and adequate lighting (lux > 15)|
|Sensor:||1/2.3” Effective pixels:12.35 M (Total pixels:12.71M)|
|Lens:||FOV ( Field Of View ) 78.8° 28 mm ( 35 mm format equivalent ) f/2.2
Distortion < 1.5% Focus from 0.5 m to ∞
|ISO Range:||100 - 3200 ( video ) 100 - 1600 ( photo )|
|Shutter Speed:||8 s to 1/8000 s|
|Max Image Size:||4000×3000|
|Still Photography Modes:||Single shot
Burst shooting: 3 / 5 / 7 frames
Auto Exposure Bracketing ( AEB ): 3 / 5 bracketed frames at 0.7 EV Bias
|Video Recording Modes:||C4K: 4096×2160 24p
4K: 3840×2160 24/25/30p
2.7K: 2704×1520 24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/96p
HD: 1280×720 24/25/30/48/50/60/120
|Max Video Bitrate:||60 Mbps|
|Supported File Systems:||FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB )|
|Video:||MP4 / MOV ( MPEG – 4 AVC / H.264 )|
|Supported SD Cards:||Micro [email protected];, Max capacity: 64GB. Class 10 or UHS-1 rating required|
|Operating Temperature:||32° to 104° F ( 0° to 40° C )|
|Rated Power:||50 W|
|Controllable Range:||Pitch -90° to +30°
Roll: 0° or 90° (Horizontally and vertically)
|Stabilization:||3-axis (pitch, roll, yaw)|
|Velocity Range:||≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground|
|Altitude Range:||1 - 43 feet (0.3 - 13 m)|
|Operating Range:||1 - 43 feet (0.3 - 13 m)|
|Operating Environment:||Surface with clear pattern and adequate lighting (Lux > 15)|
|Operating Frequency:||2.4 GHz to 2.483 GHz|
|Max Transmission Distance:||FCC Compliant: 4.3 mi ( 7 km );
CE Compliant: 2.5 mi ( 4 km )( Unobstructed, free of interference )
|Operating Temperature:||32° to 104° F ( 0° to 40° C )|
|Transmitter Power ( EIRP ):||FCC: ≤26 dBm
CE: ≤20 dBm
|Operating Voltage:||950mA @ 3.7V|
|Supported Mobile Device Size:||Thickness Supported:6.5-8.5mm
Max length: 160mm
Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™
INTELLIGENT FLIGHT BATTERY
|Battery Type:||LiPo 3S|
|Net Weight:||Approx.0.5 lbs(240 g)|
|Operating Temperature:||41° to 104° F ( 5° to 40° C )|
Customer Reviews (1)
- Lightest kit in the world! Review by Max
Quality Price Value
I can always count on Drone World to come out with the best kits on the market and their new Mavic Pro MaXX Mod LR kit definitely met my expectations! I took the kit with me to Nepal on a recent expedition and it the portability and functionality was unbelievable. Being able to get 5 miles of range out of their extended range antenna was extremely helpful in getting shots from distant mountains, and their exclusive filter kit made shots in extreme light/snow conditions very manageable. All in all, this kit is the best you can find if you're looking for a lightweight, portable, and exceptional drone package. (Posted on 3/11/2017)
Write Your Own Review
Q & A
What’s the main difference between Mavic and Phantom 4?
The Mavic is smaller, lighter, and easier to carry with you thanks to its foldable design. Its new OcuSync transmission system has a longer transmission range and 1080p resolution. Due to its larger size, the Phantom 4 has a higher maximum speed and can withstand stronger winds.
Does the folding mechanism wear out and will it need replacing?
The folding mechanism has been tested to last at least 5000 folds. It is unlikely that it will wear out during the Mavic’s lifetime.
What’s difference of camera between Mavic and Phantom 4?
The two cameras have the same features, but the Mavic’s camera has a smaller FOV, is able to focus as closely as 0.5m and can be rotated 90° for portrait shots and selfies. The Phantom 4’s larger FOV makes it better suited for landscape imaging.
Remote Controller and Wi-Fi
What is the difference between using the remote controller to control the Mavic, and using your smartphone to control it via Wi-Fi?
The Mavic remote controller uses DJI’s OcuSync transmission technology, giving it an increased range of up to 4.3mi (7km) in open areas without interference, FCC compliant. When using a smartphone connected via Wi-Fi, the controllable range is 80m, and maximum altitude is 50m, making it suitable for short-range shots like selfies and for setting up ActiveTrack. You can also download photos and videos directly from the Mavic to your mobile device via Wi-Fi. By sliding the Control Mode switch on the right hand side of the aircraft, you can choose easily between Wi-FI and RC mode depending on which transmission type you need.
How do I switch between the two controller modes?
First, make sure that your aircraft is powered off. Then, open the small cover on the right hand side of the aircraft body. Slide the switch to the left to enable Wi-Fi control, or to the right to use the remote controller.
What sizes of smartphone can fit inside the Mavic remote controller?
The Mavic remote controller can fit smartphones between 6.5-8.5mm thick and up to 160mm long, without a phone case. Phones and tablets larger than this do not fit the remote controller’s device holder.
Can I use a regular USB cable to connect my phone and remote controller?
Yes, you can. However, for the best user experience, we recommend that you use a dedicated Mavic RC (Remote Controller) Cable to connect your phone.
What’s the difference between the Remote Controller Cable (Standard Micro USB Connector) and the Remote Controller Cable (Reverse Micro USB Connector)?
Phone with display facing up:
The phone on the left has a standard Micro USB Connector; the phone on the right has a Reverse Micro USB Connector.
The Remote Controller Cable (Standard Micro USB Connector) is compatible with: Samsung, Huawei, Motorola and more. The Remote Controller Cable (Reverse Micro USB Connector) is compatible with: HTC, Mi, OPPO and more. For Sony, VIVO, and other brands, phone compatibility differs by model. Please take care to choose the correct type for your phone.
What Remote Controller Cables are included with the Mavic upon purchase?
Two cables are included in the box: one with Lightning connector and one with a standard Micro-USB connector.
What is the default Wi-Fi SSID and password?
For security purposes, each Mavic has its own SSID and password that can be found on a sticker on one of the forearms of the aircraft and inside the battery compartment. For your first use, you can scan the QR code with the DJI GO app to connect to the aircraft*, or enter the password manually under your phone’s Wi-Fi settings.
(*Only available for Android devices).
Can I use other QR code apps to scan the QR code and connect to the aircraft via Wi-Fi?
No. You must use the DJI GO app to connect to your aircraft.
How can I set the Wi-Fi SSID and password?
Connect to your Mavic via Wi-Fi and then enter Camera View. Now enter Wi-Fi settings to manually set the SSID and password.
How do I reset the Wi-Fi password back to default?
Turn on the Mavic in Wi-Fi mode, press the linking button and hold for 5s.
What is the benefit of dual-band Wi-Fi?
The 2.4G Wi-Fi frequency was developed a long time ago, 5G Wi-Fi is newer. As 2.4G is older, more devices use this frequency, making it more likely to suffer from interference. 5G is less prone to interference as there are less 5G devices, but not all phones support the 5G frequency. You can switch between these two frequency bands in the Wi-Fi Settings menu in the DJI GO app.
Do I have to take the propellers off when in transit?
No. Just fold the propellers and you are good to go.
What happens if the propellers are not fully unfolded before flight?
Once the rotors start spinning, the centrifugal force will automatically push the propellers into the correct position, so you don’t need to worry about not having unfolded them perfectly.
The Mavic’s motors are not all on the same plane. Will this affect its flight performance?
What’s the highest level of wind the Mavic can resist?
The Mavic can withstand a level 5 wind, also called a fresh breeze. This is defined as wind speeds of 19–24mph (29–38kph).
How far can the Mavic fly on a single charge?
In calm weather and under ideal conditions, the Mavic can fly up to 8 miles (13km) at 31 mph (50 kph). Real-world performance will vary though, so we urge you to monitor your battery level at all times.
Why does the Mavic have a longer flight time than hover time?
Thanks to its rotor system optimized for forward flight and its aerodynamic design, when flying at the optimum speed for energy consumption, the Mavic consumes less energy then it does hovering. This is why it is able to give you a 27 minute flight time, while its hover time is 24 minutes.
What is the main benefit of the OcuSync video transmission system?
OcuSync has a range of up to 4.3 miles (7 km) with improved resistance to interference and a higher transmission throughput. At shorter ranges it can stream footage to you at 1080p resolution and also allows photo and video downloads at 40Mb/s.
What is the resolution of the live view transmitted via OcuSync?
1080p/30fps for near-field transmission; 720p/60fps for far-field transmission.
What is OcuSync’s transmission latency?
160ms from the Mavic’s camera to your device screen under ideal conditions.
What is the difference between quick calibration and advanced calibration?
When the Vision System fails to function normally, you can do a quick calibration in the DJI GO app, or connect the aircraft to a computer to perform advanced calibration for higher precision.
What is the difference between the Mavic’s Intelligent Vision Positioning System and an Optical Flow Vision Positioning System?
The Mavic combines dual forward and downward vision sensors to realize precision hovering. Therefore, it requires no more than a patterned surface and enough available light to be able to hover stably up to 13m above the ground. Even if the Mavic is unable to identify reference points on the ground, it can still rely on its forward vision sensors to hover. In contrast, an Optical Flow system, requires information from ultrasonic sensors to supplement its view of patterned surfaces.
An example to show the difference between the two systems is when the aircraft is returning to you where you are standing on a balcony. When flying in over the balcony, drones using Optical Flow will receive data from two data sources that measure its height above the below surface differently – one being its height above the ground, and another the height above the balcony. As the data is not compatible, an Optical Flow system may become confused.
Another example is when the ground below the drone is covered by vegetation. Plants and trees do not reflect sound as well as other surfaces, causing the Optical Flow system’s ultrasonic sensors to be unable to gather altitude data.
In conclusion, the Mavic's Intelligent Vision Positioning System requires fewer inputs and is therefore more robust in its functionality.
What is the minimum distance and maximum flight speed at which the Mavic can fly while avoiding obstacles?
The Mavic will automatically avoid obstacles 50ft (15m) in front of it. The maximum speed at which the Mavic is able to avoid obstacles is 22mph (30kph).
What are the conditions required for Precision Landing?
Precision Landing is an upgraded version of GPS RTH. It needs a GPS signal strong enough to initiate Precision Landing, so that the Mavic can be navigated back to the vicinity of the take-off point.
Then, the aircraft needs to be able to visually recognize the pattern of the ground it took off from, for example cracks or other identifiable patterns. A uniform patch of sand, however, is not suitable for Precision Landing. Finally, the Mavic needs to capture footage of the ground during take-off to record its appearance. This means that you should give the Mavic sufficient time during its ascent, instead of flying away immediately after take-off.
Can the Mavic’s charger charge both its Intelligent Flight Battery and its remote controller?
Yes, it can charge a battery and two other devices simultaneously via USB. However, it will take longer to fully charge the devices.
Does the Mavic’s battery support quick charging?
Yes. The Mavic’s Intelligent Flight Battery supports quick charging at nearly 2C, with a maximum charging power of 100W. The rated power of Mavic Battery Charger is 50W, and the rated power of the Mavic Car Charger is 78W. When using the Mavic Advanced Charging Hub with a 100W adapter, the battery can be charged at 100W.
What is a Battery Charging Hub? What is the difference between the two versions of the Mavic’s Charging Hub?
The two Charging Hubs can both charge up to 4 batteries at one time. In order to fully charge the first battery as quickly as possible, the Intelligent Flight Batteries are charged in sequence according to their power levels, from high to low. This gives you the fastest way of getting all your batteries fully charged.
There are two main differences between the two Charging Hubs. First, the standard Charging Hub only supports the Mavic’s 50W Battery Charger and Mavic Car Charger, while the advanced version also supports the 100W Battery Charger and Car Charger from the Phantom 4. Second, the advanced version will balance the voltage of each battery cell to improve charging efficiency. When one battery’s charging enters the second-half of its charging phase, the next battery will enter the first-half of its charging phase. With 4 batteries all at 15%, the advanced charger can get 4 batteries fully charged in 140 minutes using the Phantom 4’s 100W charger, while the standard version will need 270 minutes with the Mavic’s 50W charger.
What is the Mavic’s Battery to Power Bank Adapter?
This adapter can be connected to the Mavic’s Intelligent Flight Battery, turning it into a power bank. Thanks to its high capacity, an Intelligent Flight Battery at 25% charge can fully charge the Mavic’s controller, or an iPhone 6.
What is the maximum output current for the Mavic’s Battery to Power Bank Adapter?
The adapter has two USB ports which can be used simultaneously. The output voltage is 5V, and the max current is 2A + 2A.
How many batteries can I carry in the Mavic’s Shoulder Bag?
Four. One mounted on the Mavic, one at the bottom of the bag, and on in each of the two side pockets.
