Phantom 3 FPV Goggles w/ Charger + HDMI Module + Long Range System Extender Upgrade

Availability: In stock Ships in 2 to 3 weeks


  • Please note: Lead Time is 2 - 3 Weeks

  • Please Note: Remote not included, this is to upgrade your remote. If you are buying this with a drone you dont have to do anything. If you already have a remote then please follow instructions below to mail us your remote.

  • Extend Your Range and Fly Safer!

  • Fat Shark DominatorV3 HD Goggles w/ Wall Charger & HDMI Module with installation on Remote for video out to Goggles

  • Better reception than factory antenna when near, when far, when behind trees, when around around other WiFi interference.

  • Expertly installed by Drone World Techs - Already have a Phantom 3? Send in your current remote to be upgraded and we'll ship back at no extra charge! - see instructions in Feature section below

  • Will NOT Void Your Warranty. Download Fat Shark User Manual HERE

Availability: Ships in 2 to 3 weeks

$999.00
Upgrades:

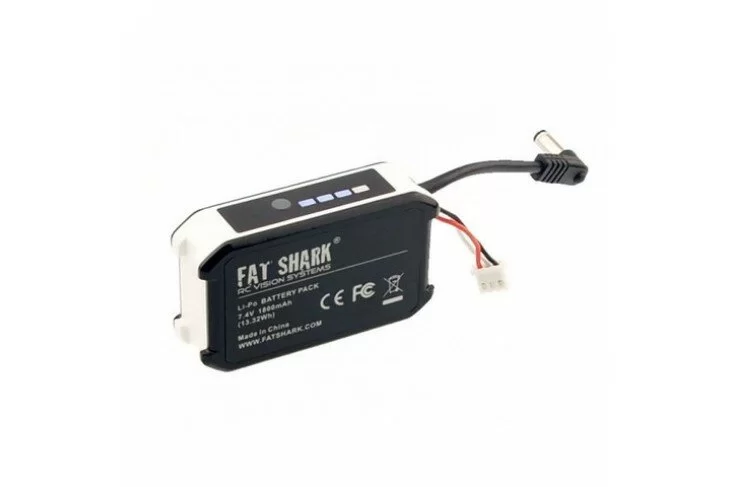

  • Fat Shark Dominator v3 Extra Battery for Headset 1800mAh 7.4V Extra Battery for FPV Headset
    $35.00

Availability: In stock Ships in 2 to 3 weeks

Bread Checkout


Paypal Credit Banner

Features

Details

  • Extend Your Range and Fly Safer!
  • Fat Shark DominatorV3 HD Goggles w/ Wall Charger & HDMI Module with installation on Remote for video out to Goggles
  • Better reception than factory antenna when near, when far, when behind trees, when around around other WiFi interference.
  • Expertly installed by Drone World Techs - Already have a Phantom 3? Send in your current remote to be upgraded and we'll ship back at no extra charge! - see instructions in Feature section below
  • Will NOT Void Your Warranty
  • *DW strongly recommends always having a spotter present when flying with FPV goggles
  • Download Fat Shark User Manual HERE



Already have a Phantom 3? Send us your remote controller and we'll cover the shipping back to you! To send your RC after purchase, please print your order's confirmation email or invoice and include it inside the box. Clearly display your order# on the outside of the box also.



Send RC* with order information to:



Drone World
(Order#)
22815 Savi Ranch Pkwy Unit E
Yorba Linda, CA 92887



*Package remote safely and carefully. We recommend getting tracking information for your shipment and insuring your RC. We are not responsible for any packages lost, stolen or damaged during transit.



Range Extender and Goggles

Long Range Flight

The Ultimate "Flying" Machine

Everyone knows BMW as the "Ultimate Driving Machine." Taking a page out of the German car manufacturer's book, Drone World went to Europe for its ultimate flying machine. Drone World's Range Extender Panel Antenna was developed in partnership with the European Union Association of Technology and leading US suppliers. Using commerical-grade, gold-plated wiring, while taking cues from BMW with a sleek design featuring white-on-white simplicity and style, the resulting 180° panel antenna range extender was created and fitted to the Phantom 3 remote controller for unrivaled connection between craft and pilot.

Aerospace Engineered

Surpassing an industry-standard like the current range of the Phantom 3 is no easy task. You'll need the brightest minds and engineers in the business. Drone World spared no expense, bringing in a head engineer with aerospace industry expertise and FAA credentials.

The result is a range extender system that does not require a HAM radio license, while being designed with the most cutting edge technology available. That means we're talking 4 to 5 miles of range in ideal conditions. And using approved tech that is safe from wind, heat and frequency interference.

More Power, More Range

If you're going to fly farther than anyone else, you'd better have the juice to do it. Drone World's range extender system was designed with a panel antenna to not only look different but perform different, too. Upgrading to the panel antenna means 180° of coverage emanating from your fingertips. Combine that with 4x more power and the resulting signal penetrates through trees and isn't affected as badly by pesky wi-fi signals generated from commerical transmitters and home routers in your area.

So what does all this mean in the end? Better technology, advanced design, genius engineers and a Phantom 3 that flies up to 4+ miles is impressive. But there's more. Greater distance in a straight line isn't enough. That's thinking only linearly. Drone World's long range system has maximized the Phantom's range up to 5x in a straight line but applied to the area of coverage in 360°, the added area of what your Phantom can see is exponential. Five miles turns into 17x the area a stock Phantom could survey and film, opening up an endless amount of possibilites.

17x More Coverage

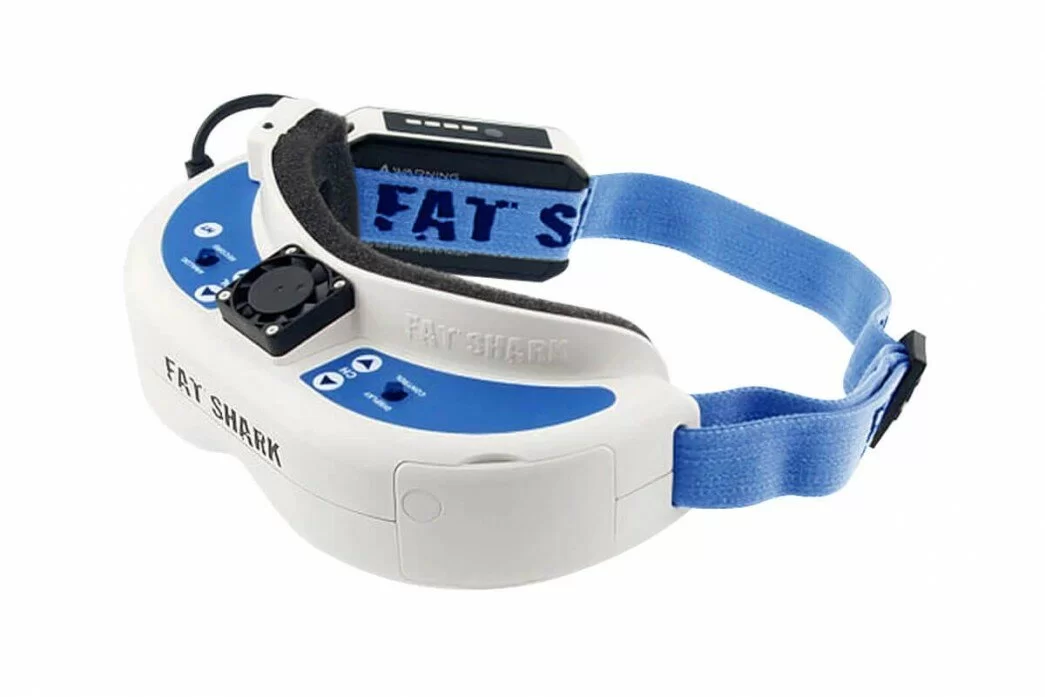

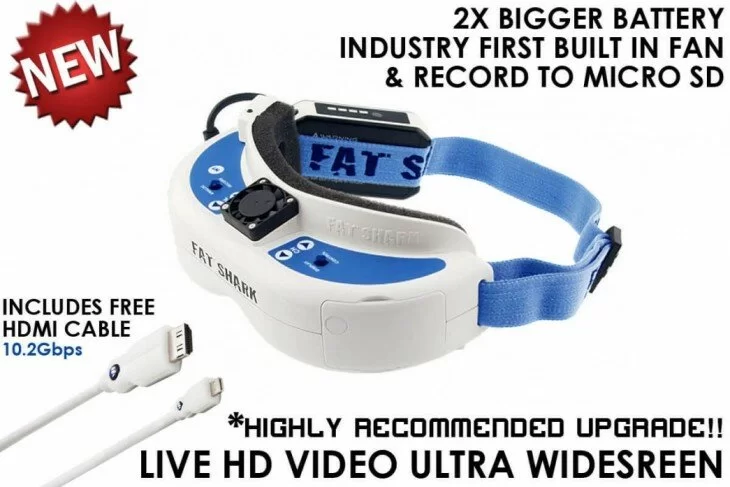

Fatshark Dominator V3 FPV Goggles

The Dominator V3 is the newest FPV video goggle in the Dominator series from Fat Shark . These video goggles allow for first-person viewing (FPV) of the video downlink from the wireless transmitter on your RC aircraft for a truly immersive flying experience.

The Dominator V3 focuses on HDMI connetivity with 720p support through a robust mini HDMI port and 16:9 format WVGA image.   An improved DVR can swap between NTSC and PAL format as well as power backup to write files should the power be disconnected while recording.   The DominatorV3 has modulal bays to support 1G3, 2G4 and 5G8 band receivers and ability to add the Trinity head tracker.


The Dominator V3 feature a modular design, meaning that additional modules and accessories can be added for expandable functionality. In order to receive the video downlink from your wireless video transmitter, a receiver module is required. Receiver modules are available in 1.3GHz, 2.4GHz, or 5.8GHz options. Please note that Fat Shark only guarantees compatibility with NexwaveRF modules from Fat Shark for ImmersionRC. To install the receiver module, simply remove the door panel on the side of the headset, insert the module, and snap the door panel back in place.

For the most immersive experience, the optional 3-Axis Trinity Head Tracker module can be inserted into a slot on the opposite side of the headset, accessed through a second removable door panel. The head tracker lets you control pan, tilt, and roll of your aircraft-mounted FPV camera (sold separately) using the motion of the headset.

Power is provided to the headset using the new 1800mAh battery which securely fits in a head strap pocket on the headset. The battery pack includes a 3 pole balance lead for charging off standard RC type chargers. Also included with the headset is a DC power cable, AV cable, and carrying case.

Specs


Optics:

FOV (field of view): 32 degrees diagonal

Plastic optics (binocular 6p direct view optical engine)

Interpupillary (IPD) distance: 57 to 73 mm (adjustable) Optional diopter lens inserts: -2, -4, -6 dpt

Audio: Stereo

User Controls: Channel selection, Volume control, Mode selection (wired/wireless), Contrast/ brightness control, DVR control, HT control

Electrical:

Power supply: 7 - 13 V (2S/3S supply)

Power consumption (@7.4V nominal): 360mA wireless mode 210mA direct mode (no RX)

RF Modules (optional): 43 channel support on 6 bands (1G3, 2G4, 4 x 5G8)

Mechanical:

Ergonomic molded headset w/ adjustable headband.

Secured rubber eye cups for ambient light reduction.

Weight: 181g

Display:

Full color Kopin CyberDisplay

600 X 480 VGA

NTCS/PAL auto selecting

HDMI support: 720x480p

Head Tracker: Modular (sold separately)

DVR:

MicroSD support to 32Gb

Record rate: 6Mbps

MJPG compression, 30 fps, AVI

File playback (no codec support other than native recording)

Upgradeable via SD card

Battery: 1000mAh, 7.4V Lithium Polymer

Interface:

3.5mm AV in/out port

Power in port

3.5mm 3p earphone port

MiniDIN4 data port (head tracking)

MicroSD

MicroHDMI

RF module port

  • Download Fat Shark User Manual HERE
  • What’s Included

    • Drone World's Extended Range Antenna and Installation
    • Fat Shark DominatorV3 Goggles with Wall Charger
    • HDMI Module
    • Installation of HDMI Module to remote
    • Goggles accessories included: HDMI cable 3m AV cable, Wall Charger, Battery, Charge cable adapter, Zipper carry case, DC DIY cable, Manual
    • Download Fat Shark User Manual HERE
