Inspire 1 Specs

AIRCRAFT

Model T600
Weight 2870 g (Battery and propellers included, Zenmuse X5 excluded)
3400 g (Battery, propellers and Zenmuse X5 included)
Max Takeoff Weight 3500 g
Hovering Accuracy (P Mode) Vertical: 0.5 m
Horizontal: 2.5 m
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle 35°
Max Ascent Speed 5 m/s
Max Descent Speed 4 m/s
Max Speed 18 m/s (ATTI mode, no wind)
Max Service Ceiling Above Sea Level 4,500 m (Default altitude limit: 120 m above takeoff point)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approxi. 15 minutes
Motor Model DJI 3510H
Propeller Model DJI 1345T
Indoor Hovering Enabled by default
Operating Temperature 14° to 104° F (-10° to 40° C)
Diagonal Distance 559 mm



CHARGER

Model A14-100P1A
Voltage 26.3 V
Rated Power 100 W



BATTERY (OPTIONAL)

Name Intelligent Flight Battery
Model TB48
Capacity 5700 mAh
Voltage 22.2 V
Battery Type 6S LiPo High voltage battery
Energy 129.96 Wh
Net Weight 670 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Max Charging Power 180 W
Max Flight Time Approx. 18 minutes



DJI GO APP

Requirements iOS 8.0 (or later) and Android 4.1.2 (or later)
Supported Mobile Devices Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional Android devices available as testing and development continues.



REMOTE CONTROLLER

Name C1
Operating Frequency 922.7~927.7 MHz (Japan Only)
5.725~5.825 GHz
2.400~2.483 GHz
Max Transmitting Distance FCC Compliant: 3.1 miles (5 km); CE Compliant: 2.1 miles (3.5 km)
(unobstructed, free of interference)
EIRP 10 dBm@900m MHz, 13 dBm@5.8 GHz, 20 dBm@2.4 GHz
Video Output Ports USB, Mini HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170mm
Output Power 9 W
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Battery 6000 mAh 2S LiPo

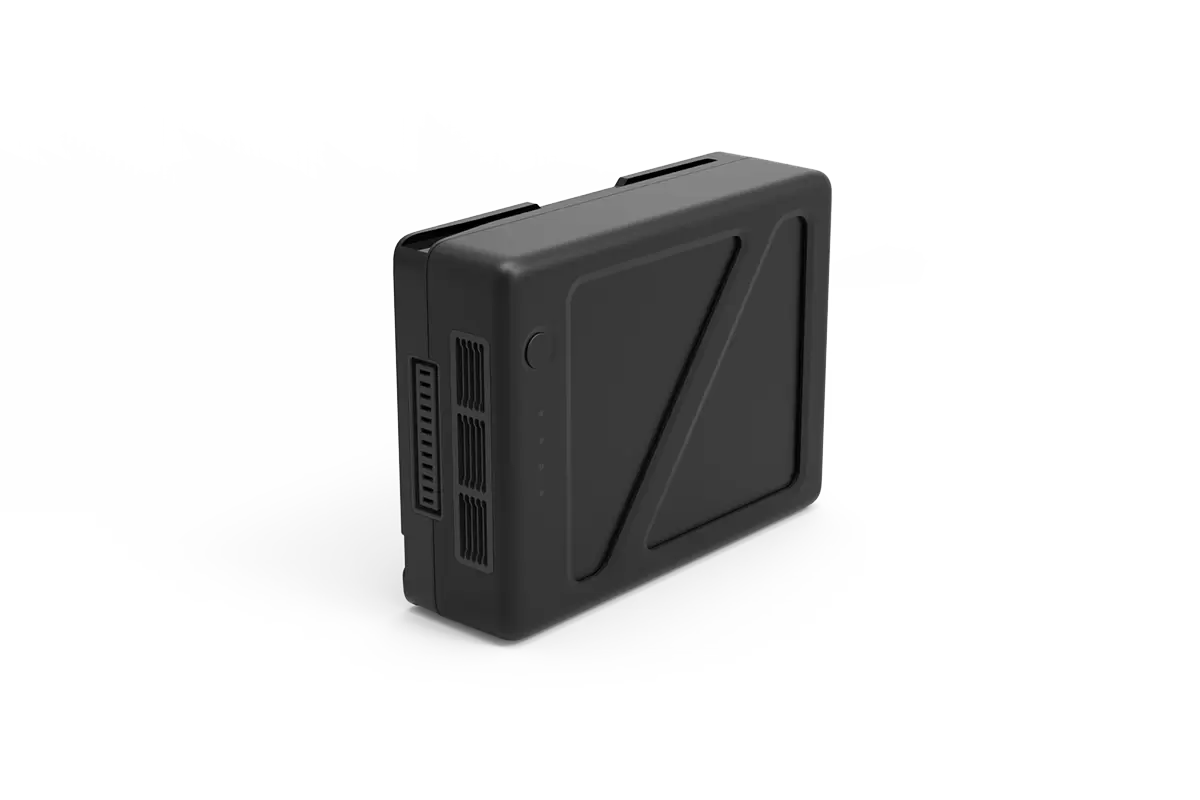

BATTERY (STANDARD)

Name Intelligent Flight Battery
Model TB47
Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S High voltage battery
Energy 99.9 Wh
Net Weight 570 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Max Charging Power 180 W



VISION POSITIONING

Velocity Range < 8 m/s @altitude 6.56 feet (2 m)
Altitude Range 0.16 - 16.4 feet (5-500 cm)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Operating Range < 9.84 feet (300 cm)



GIMBAL AND CAMERA

GENERAL

Name Zenmuse X5
Dimensions 120 (W) x 135 (H) x 140 (D) mm
Weight 530 g (Including original lens, balancing ring, lens hood, Micro SD card)
Operating Temperature 32° to 104° F (0° to 40° C)



CAMERA

Lens Replaceable lens
M43 mount supporting auto-focus
Supported Lens DJI MFT 15mm f/1.7 ASPH
Panasonic Lumix 15mm f/1.7
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8 *
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ *
(photopraphy only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
(photopraphy only)
*Requires a balancing weight
Sensor Type 4/3 CMOS sensor
Effective Pixels 16 M
Max Resolution 4608x3456
ISO Range 100-25600
Electronic Shutter Speed 8 s-1/8000 s
Field of View DJI MFT 15mm f/1.7 ASPH 72°
Still Photography Modes Single shot
Burst shooting:3/5/7 frames
Auto Exposure Bracketing (AEB):3/5 bracketed frames at 0.7EV bias
Timelapse (5/7/10/20/30 sec)
Video Resolution UHD:4K (4096×2160) 24/25p, 4K (3840×2160) 24/25/30p,2.7K (2704×1520) 24/25/30p;
FHD:1920×1080 24/25/30/48/50/60p
Max Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤ 32 GB), exFAT (> 32 GB)
Photo Formats JPEG, DNG (RAW)
Video Formats MP4/MOV (MPEG-4 AVC/H.264)
Supported Storage Devices Class 10 or UHS-1 or above Micro SD cards
Max capacity of 64 GB
  The Inspire 1 Pro has been certified by Apple in their Works with iMovie and Works with Final Cut Pro X programs, so you can edit 4K without worry whether you are a professional or shooting for fun.



ORIGIN LENS

Name DJI MFT 15mm f/1.7 ASPH
Focal Length f=15 mm (35 mm format equivalent 30 mm)
Aperture Type 7 diaphragm blades/circular aperture diaphragm
Maximum Aperture F1.7
Minimum Aperture F16
Lens Construction 9 elements in 7 groups (3 aspherical lenses)
In Focus Distance 0.2 m to ∞ (from the focus distance reference line)
Mount Micro Four Thirds Mount
Angle of View 72°
Max. Diameter Approx. 2.26 inches (57.5 mm)
Overall Length Approx. 1.42 inches (36 mm)
Weight Approx. 115 g



GIMBAL

Angular Vibration Range ±0.02°
Mount Detachable
Controllable Range Pitch: -90° to +30°
Pan: ±320°
Max Controllable Speed Pitch: 120°/s
Pan: 180°/s

.
